Multigraf MKF35 RC Modular Knife Folder

The Multigraf modular knife folder MKF-35 is designed to fold large stocks of paper and card and is used by businesses to fold paper, cardboard, greeting cards, booklets, folded sheets and leaflets. This is an extremely flexible solution for the folding of paper stocks and weights up to 3 mm in thickness which can all be easily and precisely folded. It's unique design allows the machine to be used online to the Multigraf's folding and creasing machines as well as with machines from other manufactures.  Create your own machine by choosing: infeed system, counter, delivery, machine table.

Why buy? For business owners

To respond to the different requirements, a choice of five infeed systems are available. The MKF-35 , may used as a parallel or a right angled folder. In combination with the correct infeed device and a height adjustable stand. It can be used as a versatile folder in combination with different applications.

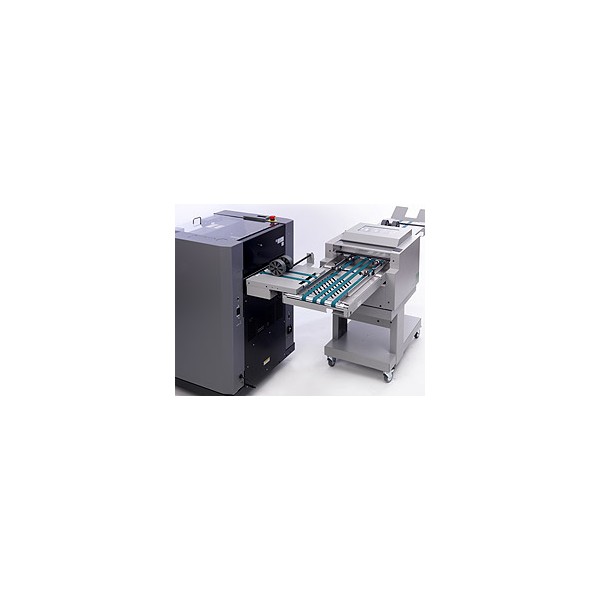

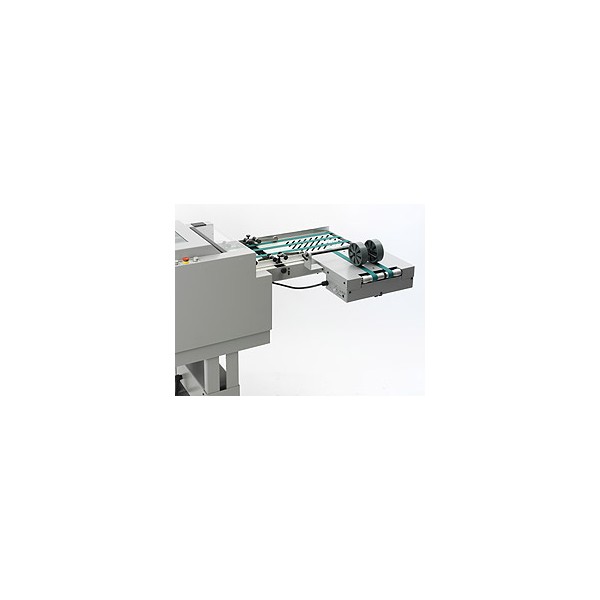

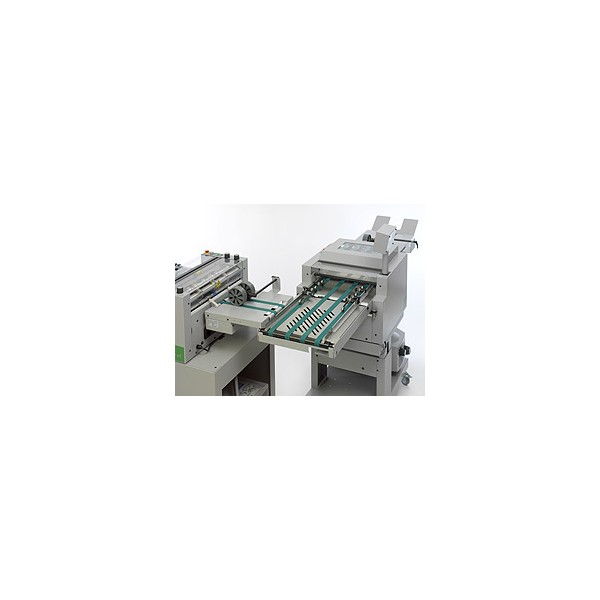

Together with a standard vacuum or a deep pile feeder, the MKF-35 runs as a stand-alone parallel folding device. As soon as a belt or roller infeed conveyor is applied, the machine can run products online from another unit. This same configuration offers the possibility of some online application with machines other than the Multigraf products.

Possible online applications are with creasing machines, endless form cutters, digital printers and booklet makers of any type.

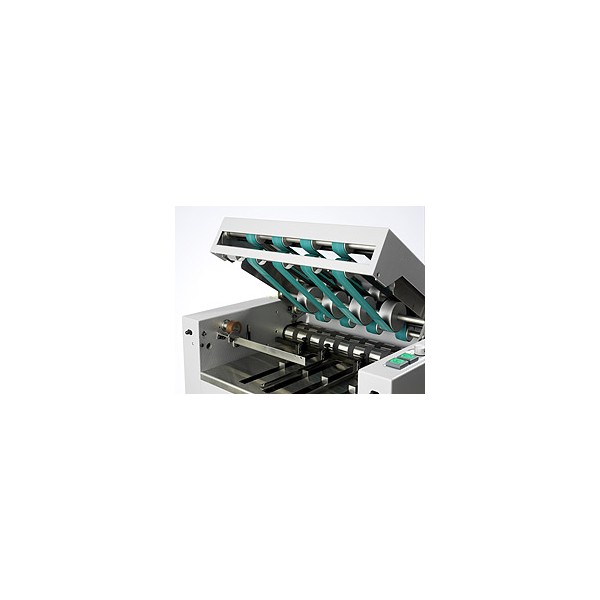

The MKF is equipped with adjustable, heavy duty spring loaded combination rollers to achieve accurate and precise folding of difficult and thick products.

The modular knife folder MKF-35 is a multifunctional product which offers a great variety of different solutions. No other knife folder in the market is as versatile and multifunctional as Multigraf's modular knife folder MKF-35.

Why buy? For operators

Adjustments of the machine

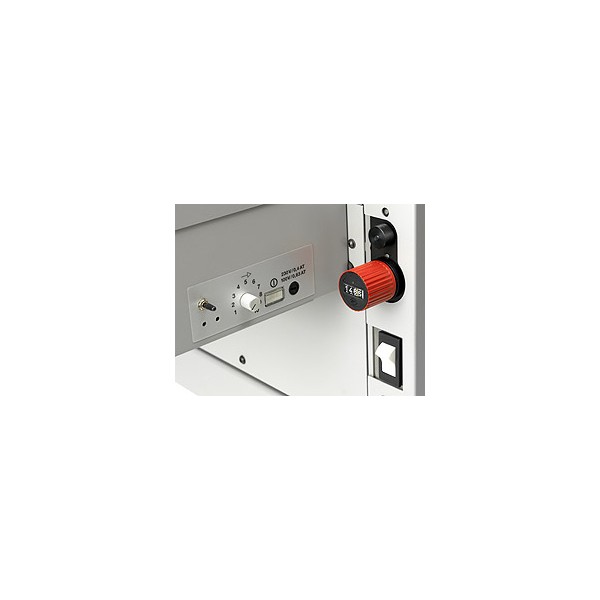

The operation of the MKF-35 is easy. The length of the fold adjusts by a simple dial with an integrated millimetre scale. The backstop is equipped with a skew adjustment. All other functions are fully automated and self controlled.

Heavy and solid construction
The MKF-35 knife folder is of a heavy and sturdy construction. Combination rollers assure an accurate folding process. The roller pressure is adjustable. The MFK-35 has been designed to achieve an accurate and professional finish, together with high productivity for a long working life.

Specifications:

• Minimum infeed width 100 mm
• Maximum infeed width 350 mm
• Minimum folding length 60 mm
• Maximum folding length 240 mm
• Minimum sheet size 100 x 120 mm
• Maximum sheet size 350 x 500 mm
• Production speed Up to 15‘000 cycles/h
• Type of folding rollers Combination rollers (steel/rubber)
• Fold roller adjustment Yes, to be adjusted to the product’s thickness, spring loaded
• Maximum thickness 2-3 mm, depending on the flexibility of the product
• Compatibility To be combined with all Multigraf feeders and paper transfer conveyors.
• Online use with a number of other machines and equipment
• Use Parallel- and cross folding (right angle)
• Weight 90 kg, including stand
• Power supply 230 V, 50 Hz / 115 V, 60 Hz
• Dimension 506 x 530 mm (without feeder and delivery)

Optional Extras:

• Roller Guide Option
• Side Lay Register Table
• Electric Transfer Unit
• Straight Belt Table A3
• Middle Guide
• Deep Pile Feeder
