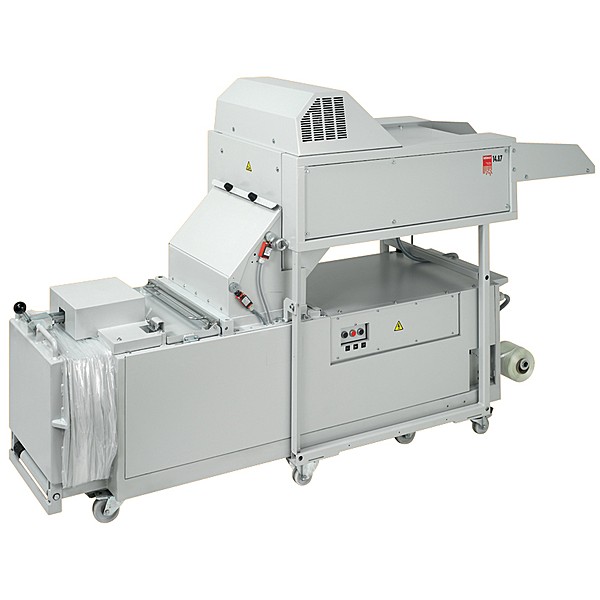

Intimus 14.87 Shredder with Baler

Intimus 14.87 Shredder with Baler























Intimus 14.87 Shredder Description:





The economical supplement to the large document shredder: the shredded material is automatically compressed into compact bales, feeding via conveyor belt, dosage paddles pull not only smooth, but crumpled paper in the same way, rugged, wear-resistant cutting rollers made from high-grade steel for optimum cutting performance, High-power, thermally protected geared electric motor with automatic delta-wye-start, 440 mm working width; suitable for all standard computer formats, shredded material is automatically pressed into compact bales, shredder and baler operate in tandem, electronic compacting chamber level monitoring, compressing stroke is triggered automatically

• Manual ON/OFF control
• Auto Stop/Reverse/Restart
• Sheet steel housing with hydraulic baler

Intimus 14.87 Shredder Video Overview

Further Overview:





The Intimus 14.87 Shredder and Baler are designed for high volume shredding and compacting. The Shredder/Baler Combination automatically compresses the shredded material into compact bales, reducing the volume of shredded material by about 70% as compared with collecting it in loose form. In this professional solution the shredder and baler operate in tandem. Shredder loading can continue while the baler is compressing the material. An audible “bale completed” signal sounds and the  bale is ejected from the compacting chamber at the press of a button.

The economical supplement to the large document shredder: the shredded material is automatically compressed into compact bales, feeding via conveyor belt, dosage paddles pull not only smooth, but crumpled paper in the same way, rugged, wear-resistant cutting rollers made from high-grade steel for optimum cutting performance, High-power, thermally protected geared electric motor with automatic delta-wye-start, 440 mm working width; suitable for all standard computer formats, shredded material is automatically pressed into compact bales, shredder and baler operate in tandem, electronic compacting chamber level monitoring, compressing stroke is triggered automatically

Specifications:

• Dimensions: 80(w)x268(d)x164(h) cm
• Sheet capacity: 100-140 sheets for Strip-Cut and 100-130 sheets for Cross-Cut
• Cutting speed: 0.28 m/sec forStrip-Cut and 0.30 m/sec for Cross-Cut
• Working width: 440 mm
• Motor power: 8.0kw
• Supply voltage: 400 volt (3 phase)
• Baler press force: 8 tonne
• Bale weight: 60-80 kg
• Bale dimensions: 80(L)x60(W)x50cm(H)
• Weight net: 973kg
• Warranty 2 years machine, Cutter 5 years
